CONDIÇÕES OCULARES

Topografia escleral

Eye Surface Profiler

Transforming Specialty Lens Fitting

Profilometry Advantage

Características Principais:
  • Versatile
  • Designed to fit all types of specialty contact lenses: Scleral, OrthoK, GP, Soft and Hybrid
  • Full Ocular Surface
  • It measures the cornea, limbus to limbus, and the sclera up to 20mm dia.
  • Fast & Easy to Use
  • Single shot, more than 500,000 data points with no stitching or extrapolation
  •  Fewer Refits
  • Integrated algorithms calculate the first lens

for more than 50 lenses from 25+ labs

  • Precise
  • High precision as needed for the different lenses:

2μ in the cornea & 10μ in the sclera

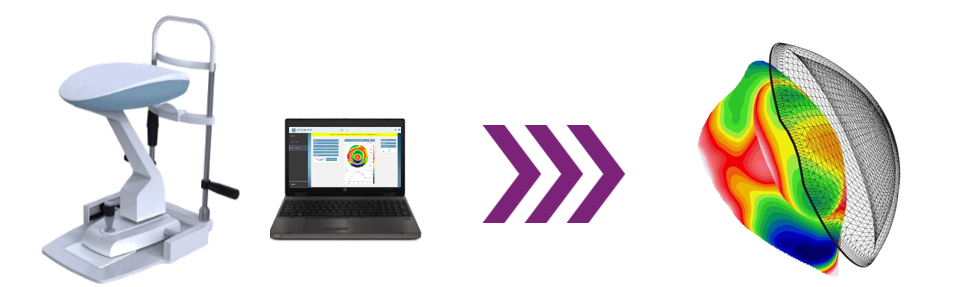

Streamlining the Fitting Process

1. Conduct the Digitalization

2. Analyze the 3D Ocular Data

3. Apply Lens Adaptation Algorithms

4. Lens Ordering System

1- Take a Scan

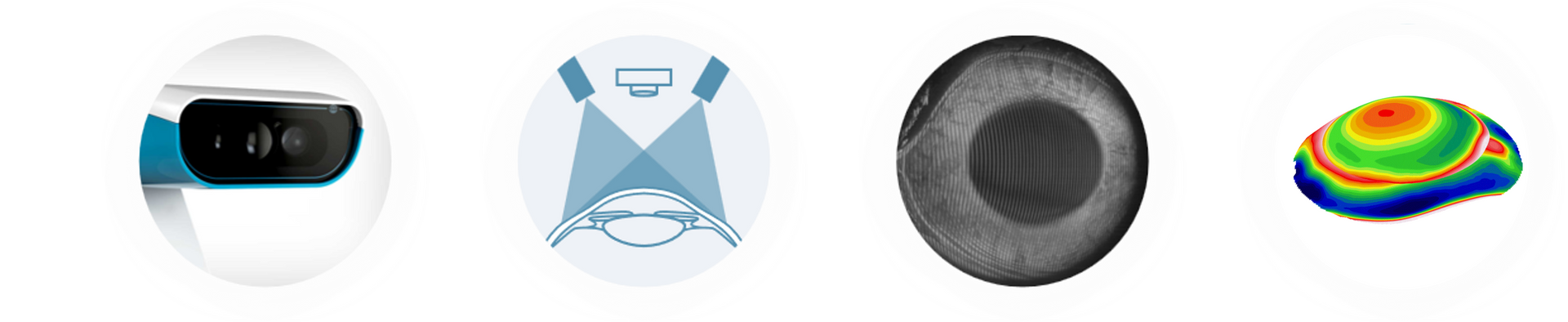

Eye Surface Profiler – A new technology based on Fourier Transform Profilometry.

1) Photo

One camera, two light projectors


 2) Image Processing

Fourier Transformation

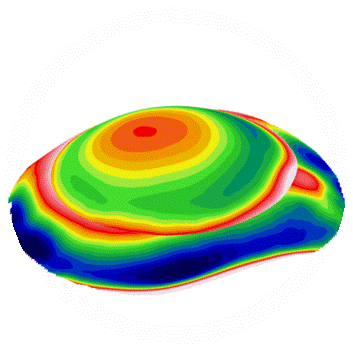

3) 3D Height Profile

500,000 data points

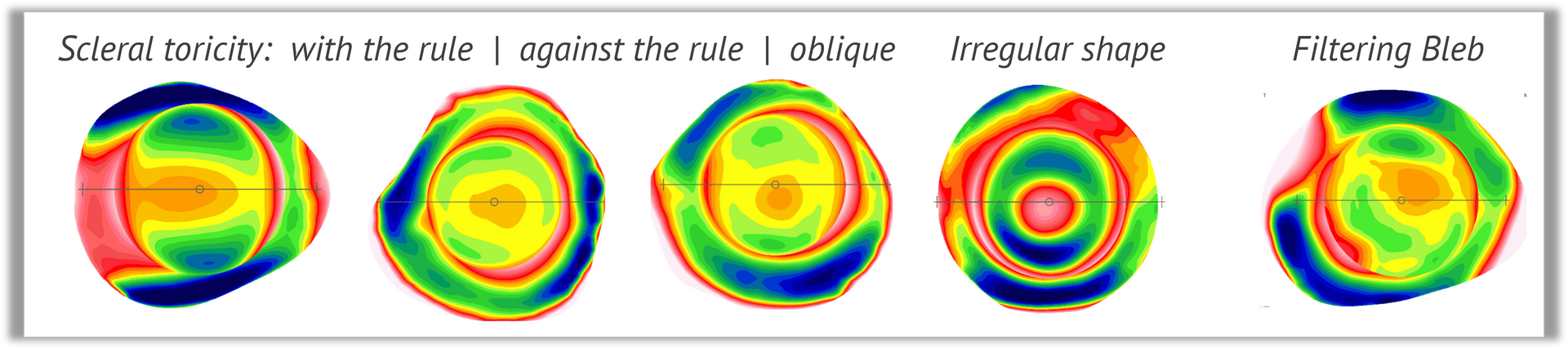

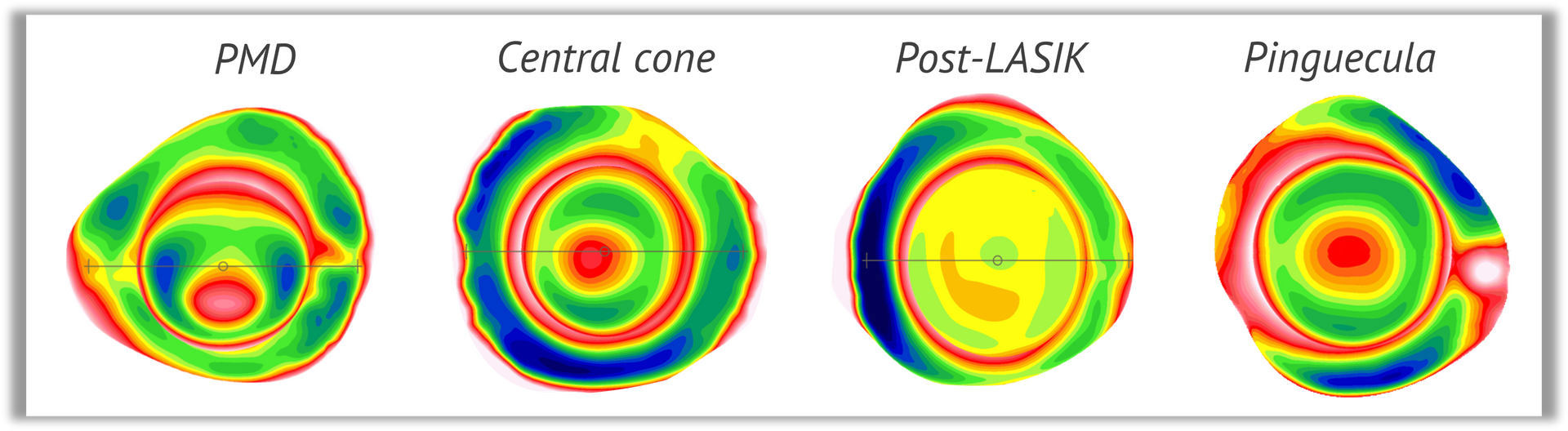

2- ANALYZE 3D EYE DATA



Images courtesy of Javi Rojas, OD (ES); David Piñero, OD, PhD (ES), Aaron Wolf, OD (USA


3- LENS FITTING ALGORITHMS

OrthoK
GP
Soft
Sclerals
Hybrid

4- LENS ORDER SYSTEM


DirectConnect – the direct connection between the ESP and the lab of your choice.

  • Eye scan (500,000 data points)
  • All Lens Parameters
